The lightweight and biomimetic structural design, along with the flexible and superb movement
Performance, endows the robot with a nimble body, enabling it to perform difficult actions such as dancing and jumping with precision and control. Its movement performance is at a relatively high level in the industry.
Super-stable motion control, allowing for easy navigation through complex terrains
The robot is equipped with high-precision motion control algorithms, enabling smooth passage through various complex road conditions. Its stability has been verified through multiple real-world scenarios.
With a peak torque of 150 N.m, it can perform high-dynamic dance moves with ease.
The robot's peak torque unleashes powerful force, enabling millisecond-level responses to various high-dynamic dance movements. At the World Robot Operating Conference, it won the championship for its precise control of dance, long jump and gymnastics postures.
| Model Comparison : Price |
N 2 EDU
Contact Consultant
|
||
|---|---|---|---|

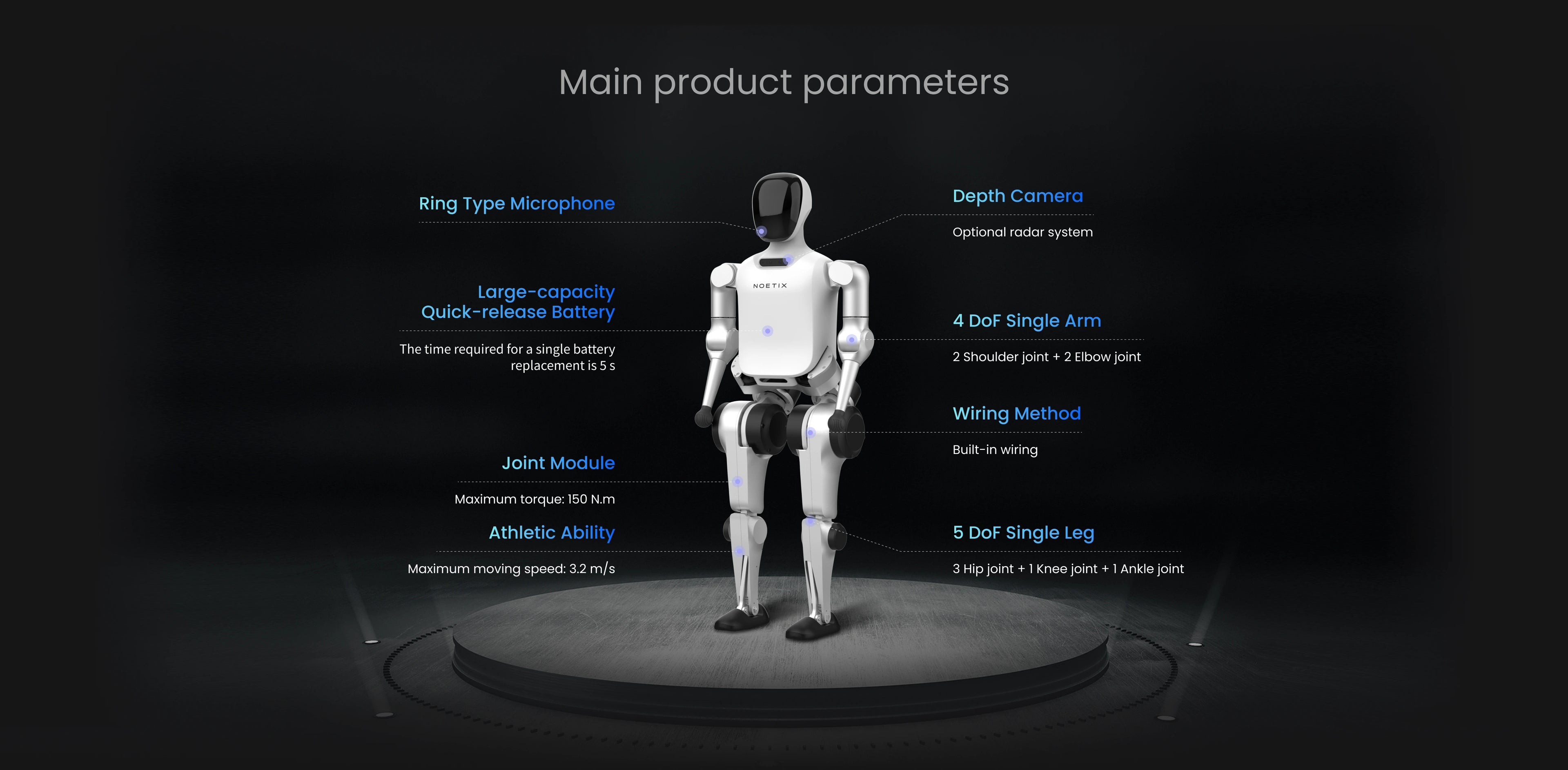

| Mechanical dimensions | Tall, broad and thick (standing) |
118 cm * 47 cm * 29 cm | 118 cm * 47 cm * 29 cm |
| Overall weight of the robot | About 30 kg | About 30 kg | |
| Total degrees of freedom | 18 DoF | 18 DoF | |
| Single-leg degrees of freedom | 5 DoF | 5 DoF | |
| Single-arm degrees of freedom | 4 DoF | 4 DoF | |
| The end effector | Spherical hand/Five-fingered hand | Spherical hand/Five-fingered hand | |
| Joint output bearing | Cross roller + deep groove ball | Cross roller + Deep groove ball | |
| Maximum knee torque | 150 N.m | 150 N.m | |
| Continuous walking carrying capacity |
About 5 kg | About 5 kg | |
| Extremely large joint movement space |
Knee joint: 0~126° Hip joint: P-90°~45°、R-37°~+57°、Y-37°~+57° |
Knee joint: 0~126° Hip joint: P-90°~45°、R-37°~+57°、Y-37°~+57° |
|
| Electrical Characteristics | Wiring method | Built-in wiring | Built-in wiring |
| Joint encoder | Double computing module | Double computing module | |
| Power supply method | Lithium battery | Lithium battery | |
| Basic Computing Power | 6 TOPS | 6+67 TOPS | |
| Sensing sensor | Depth camera, IMU | Depth camera, IMU | |
| Ring type microphone | ✓ | ✓ | |
| Voice module | / | Selective assembly | |
| Wi-Fi6, Blue tooth5.2 | ✓ | ✓ | |
| Complementary items | High Computing Power module |
/ | NVIDIA Jetson Orin Nano Super |
| Intelligent battery (quick release) |
48 V 7 Ah | 48 V 7 Ah | |
| Charger | ✓ | ✓ | |
| Controller | ✓ | ✓ | |
| Robot support structure | Selective assembly | Selective assembly | |
| Others | Intelligent OTA Upgrade | ✓ | ✓ |
| Secondary development | / | ✓ | |
| Battery life | 1-2 h | 1-2 h | |
| User manual and instruction booklet |
✓ | ✓ | |
| After-sales service | Provide technical support and SDK document | Provide technical support and SDK document |
- The above parameters may vary under different business scenarios and device configurations. Please refer to your actual usage experience for details.
- The maximum torque, the maximum load capacity of the arm and the battery life are all measured under laboratory conditions.
- The product is continuously being updated and optimized. There may be slight differences. Please refer to the actual product received for details.
- There are differences in parameters among different products. Please make your purchase based on your specific needs.
- The appearance of the shipping version may be different from the official website version. If you are particularly concerned about the details of the appearance, please communicate with the salesperson before purchasing to confirm.
- The robot has a complex structure and extremely powerful power. Please ask users to keep efficient safety distance between humans and the robot. Please use it carefully.
- Some of the sample functions on this page are still under development and testing. They will be gradually made available to users in the future.
- At present the world is in the early exploration stage and individual user should be sure to understand the limitations of humanoid robots in detail before purchasing.
- This product is a civilian robot. Please do not attempt any dangerous modifications or use the robot dangerously.
- Please visit the Noetix Robotics official website to learn more about product-related terms and policies and please comply with the laws and regulations of your region.
